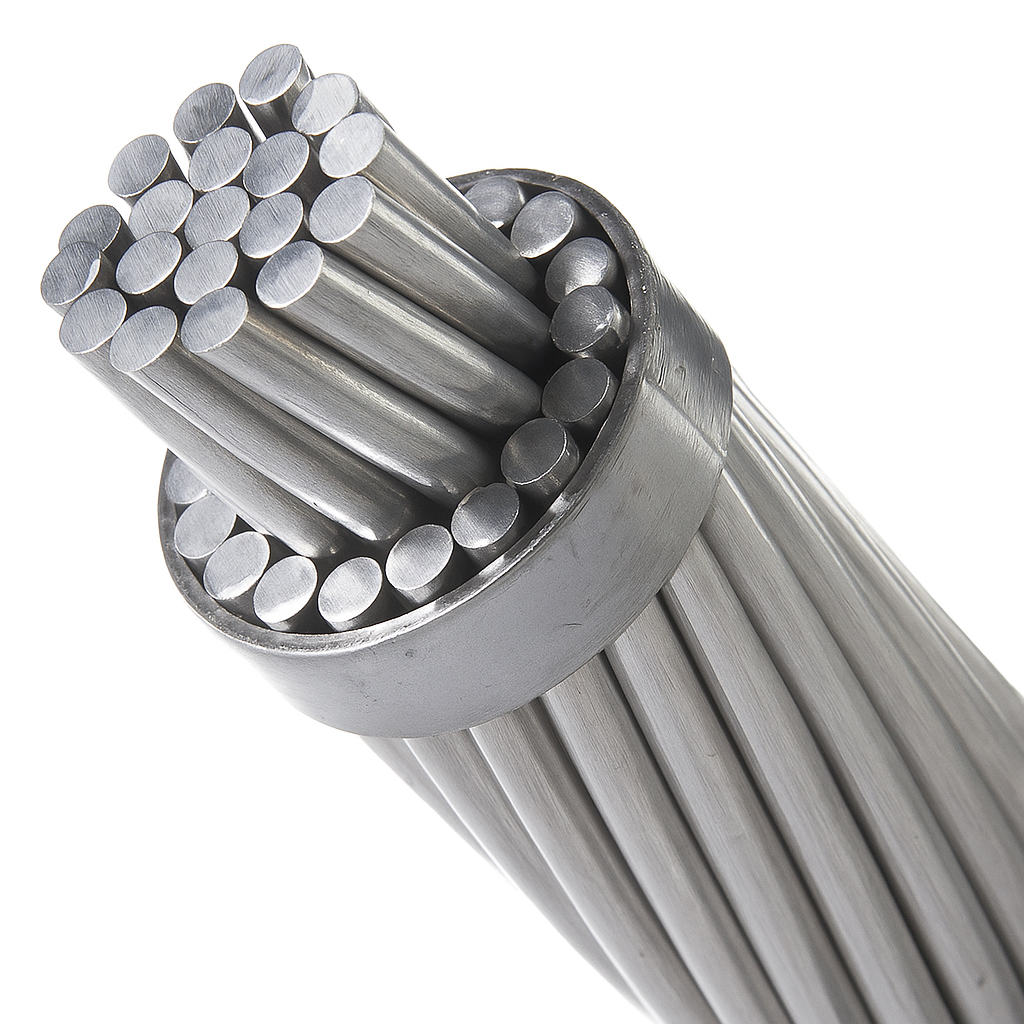

AAAC conductors are made from high-strength aluminum-magnesium-silicon (AlMgSi) alloy wires, concentrically stranded in one or more layers.
They combine excellent conductivity, corrosion resistance, and high tensile strength, making them suitable for medium and high voltage overhead lines where both mechanical performance and electrical efficiency are required.
The aluminum alloy (typically EN AW-6101 / 6201) offers improved mechanical strength compared to AAC, while maintaining good conductivity and low weight.
Main Features
Manufactured from AlMgSi (EN AW-6101 T81) aluminum alloy
High tensile strength and excellent sag performance
Superior corrosion resistance – ideal for coastal & industrial environments
Light weight and high conductivity (52–55 % IACS)
Concentric-lay stranding for flexibility and durability
Complies fully with EN 50182 / IEC 61089
Technical Data – Typical Dimensions
AAAC – All Aluminum Alloy Conductors (According to EN 50182 / IEC 61089)
| Conductor Type | Construction (Wires × Dia. mm) | Nominal Cross Section (mm²) | Overall Dia (mm) | Approx. Mass (kg/km) | Breaking Load (kN) | DC Resistance (Ω/km @20°C) | ASTM Equivalent |
|---|---|---|---|---|---|---|---|
| AAAC 16 mm² | 7 × 1.70 | 16 | 5.1 | 43 | 5.6 | 1.950 | 16.0 AAC Equ. |
| AAAC 25 mm² | 7 × 2.14 | 25 | 6.4 | 67 | 8.5 | 1.210 | 25.0 AAC Equ. |
| AAAC 35 mm² | 7 × 2.52 | 35 | 7.6 | 93 | 11.6 | 0.870 | 35.0 AAC Equ. |
| AAAC 50 mm² | 7 × 3.00 | 50 | 9.0 | 133 | 15.9 | 0.645 | 50.0 AAC Equ. |
| AAAC 70 mm² | 7 × 3.55 | 70 | 10.7 | 185 | 21.5 | 0.450 | 70.0 AAC Equ. |
| AAAC 95 mm² | 7 × 4.04 | 95 | 12.1 | 245 | 28.7 | 0.330 | 95.0 AAC Equ. |
| AAAC 120 mm² | 19 × 2.89 | 120 | 13.8 | 308 | 36.0 | 0.260 | 120.0 AAC Equ. |
| AAAC 150 mm² | 19 × 3.15 | 150 | 15.0 | 380 | 43.5 | 0.210 | 150.0 AAC Equ. |
| AAAC 185 mm² | 19 × 3.40 | 185 | 16.3 | 468 | 52.0 | 0.172 | 185.0 AAC Equ. |
| AAAC 240 mm² | 19 × 3.78 | 240 | 18.2 | 605 | 64.0 | 0.128 | 240.0 AAC Equ. |
| AAAC 300 mm² | 37 × 3.15 | 300 | 19.5 | 740 | 77.0 | 0.104 | 300.0 AAC Equ. |
| AAAC 400 mm² | 37 × 3.55 | 400 | 22.0 | 980 | 98.0 | 0.082 | 400.0 AAC Equ. |
| AAAC 500 mm² | 37 × 3.97 | 500 | 24.6 | 1220 | 118.0 | 0.066 | 500.0 AAC Equ. |
| AAAC 630 mm² | 61 × 3.30 | 630 | 26.5 | 1530 | 142.0 | 0.052 | 630.0 AAC Equ. |
| AAAC 800 mm² | 61 × 3.70 | 800 | 29.6 | 1940 | 177.0 | 0.041 | 800.0 AAC Equ. |
Standards
EN 50182 / IEC 61089 – Overhead electrical conductors
TS EN 50182 / TS IEC 61089 – Turkish Standard equivalent
ASTM B399 / B399M – All-Aluminum Alloy Conductors (for reference)
BS 3242 – British Standard equivalent
Applications
Medium and high voltage overhead transmission lines
Areas with high wind or ice loading
Coastal and industrial environments with high corrosion risk
Alternative to ACSR in corrosive or weight-sensitive installations
