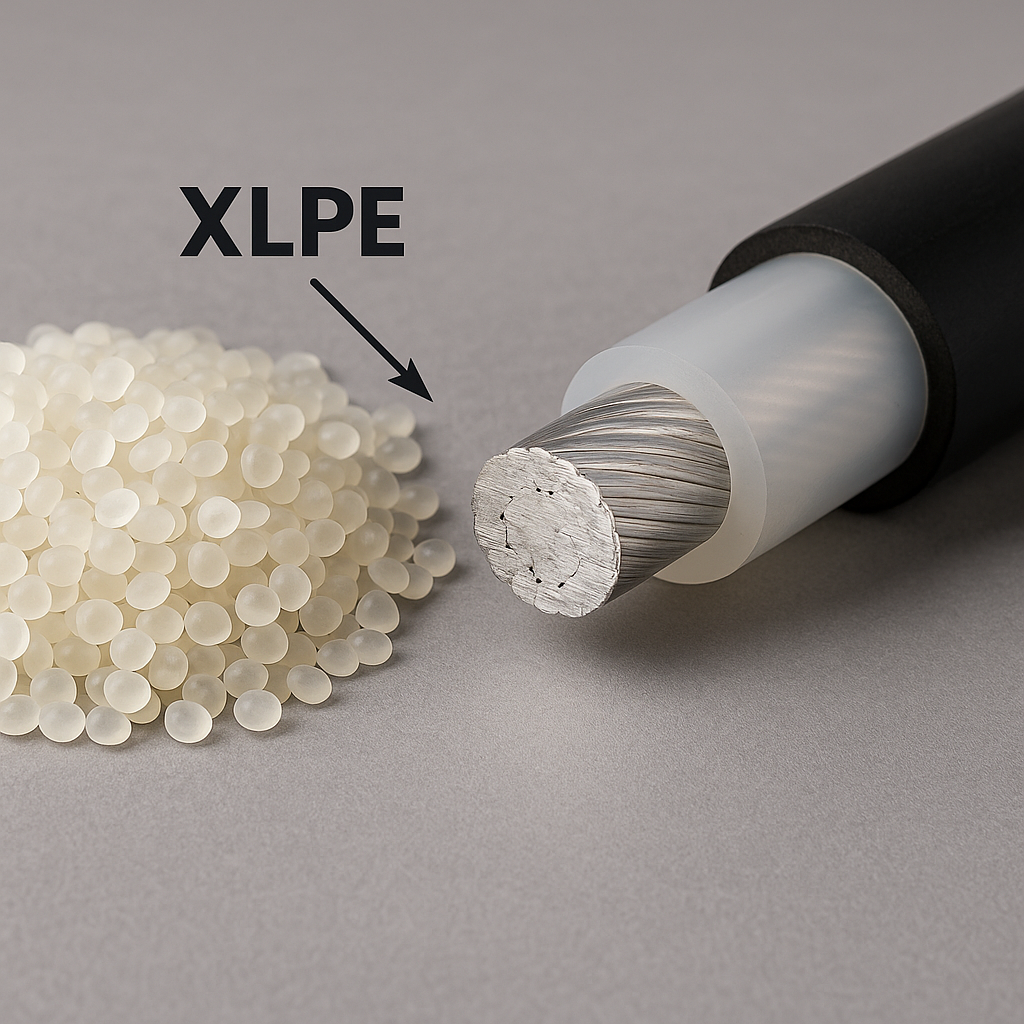

XLPE Compound Natural

XLP13 is a silane cross-linkable polyethylene compound designed for low-voltage (≤1 kV) cable insulation.
When processed with its catalyst masterbatch CAT13N, it provides excellent mechanical strength, insulation performance, and long-term durability under standard extrusion and moisture-curing conditions.

XLP13 is a pre-grafted polyethylene compound intended for moisture-cure crosslinking in cable insulation.
When mixed with 5 % of its catalyst masterbatch CAT13N, it forms a high-quality XLPE insulation layer with excellent thermal and electrical properties.
This compound is ideal for low-voltage power and control cables (up to 1 kV) and is compatible with high-speed extrusion lines.

Key Features
Natural XLPE compound for LV cable insulation
Excellent electrical resistivity and mechanical strength
Smooth surface finish and stable extrusion behavior
Long-term ageing resistance at 135 °C
Complies with BS 7870-5, IEC 60502-1

Technical Specifications

Property	Typical Value	Standard
Melt Flow Index (190 °C / 5 kg)	3.5 ± 0.5 g/10 min	ASTM D1238
Density	0.92 ± 0.005 g/cm³	ASTM D792
Tensile Strength	≥ 20 N/mm²	IEC 60811-1-1
Elongation at Break	≥ 500 %	IEC 60811-1-1
Ageing (7 days @ 135 °C) Δ Tensile / Δ Elongation	≤ 25 % / ≤ 25 %	IEC 60811-1-2
Hot-Set Test (200 °C, 0.2 MPa)	Elong. ≤ 100 %, Perm. ≤ 10 %	IEC 60811-2-1
Volume Resistivity (23 °C)	≥ 10¹⁶ Ω·cm	ASTM D257
Water Absorption (85 °C)	≤ 1 mg/cm³	IEC 60502-2
Shrinkage (130 °C, 1 hr)	≤ 4 %	IEC 60502-2

Processing Guidelines
Mix XLP13 + CAT13N in a 95:5 ratio at room temperature just before extrusion.
Extrusion zones: 140 – 190 °C (typical).

Crosslinking methods
Hot water 90 °C × 2–6 h
Steam 6–15 h

Applications
Insulation of low-voltage power and control cables
Suitable for XLPE insulation lines and continuous extrusion

Packaging & Storage
Supplied as pellets in 25 kg aluminum multilayer bags.
Store below 35 °C in dry conditions; use within 6 months and within 4 hours after opening.
