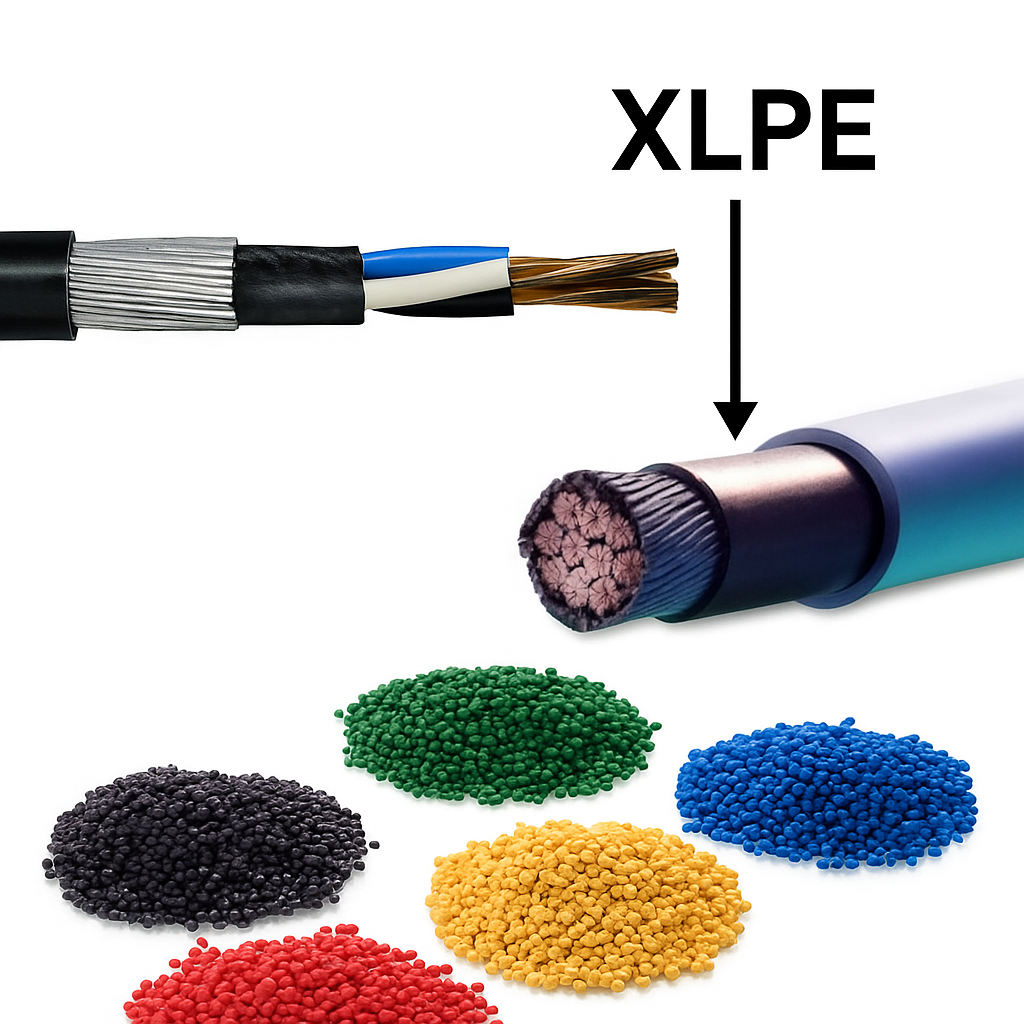

XLP12BC is a pre-grafted polyethylene compound designed for moisture-cure crosslinking in cable insulation applications.
It is processed with its corresponding catalyst masterbatch CAT12N (5%) in standard extrusion lines.
The compound contains 2.5% carbon black for UV stability and weathering resistance, making it ideal for Aerial Bundled Cable (ABC) insulation.

Key Features & Advantages
Excellent weather and UV resistance (2.5% carbon black content)
Superior tensile strength and elongation
Reliable crosslinking through moisture exposure
Consistent extrusion performance and smooth surface finish
Complies with NF C 33-209, BS 7870-5, and IEC 60502-1

Technical Specifications

Property	Typical Value	Standard / Method
Melt Flow Index (190°C/5kg)	4 ± 0.5 g/10 min	ASTM D1238
Density	0.930 ± 0.005 g/cm³	ASTM D792
Tensile Strength	≥ 18 N/mm²	IEC 60811-1-1
Elongation at Break	≥ 400 %	IEC 60811-1-1
Aging (10 days at 150°C)	ΔTensile ≤ 25%, ΔElong. ≤ 25%	IEC 60811-1-2
Hot Set Test (200°C, 0.3 MPa)	Elongation ≤ 100%, Permanent ≤ 15%	IEC 60811-2-1
Carbon Black Content	2.5 ± 0.5 %	ASTM D1603

Processing Guidelines
Mix XLP12BC with CAT12N (95:5 ratio) at room temperature before extrusion.
Extrusion temperatures: 140–190°C (zone dependent).
Do not preheat or store premix for long durations.
Crosslinking by immersion in 90°C water (2–6 hrs) or steam (6–15 hrs).

Applications
Insulation of Aerial Bundled Cables (ABC)
Low and medium voltage insulation layers
Moisture-cured XLPE systems

Packaging & Storage
Supplied as pellets in 25 kg aluminum multilayer bags.
Store below 35°C, away from sunlight and humidity.
Use within 6 months of production and within 3–4 hours after opening.
